CineBack® V2 for Canon R5c, R5 and R6

Turn your Canon R5 C into a cinema camera with CineBack®!

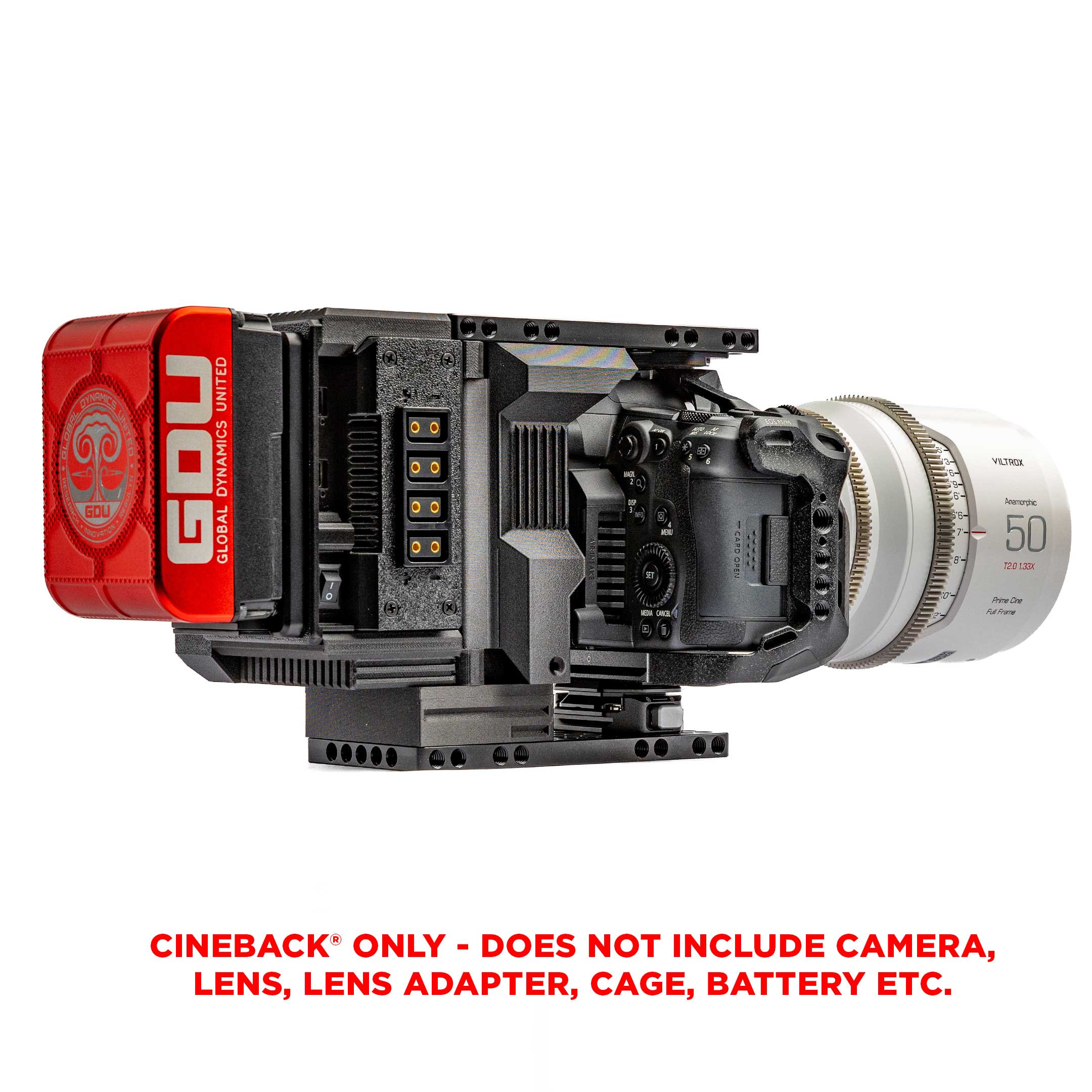

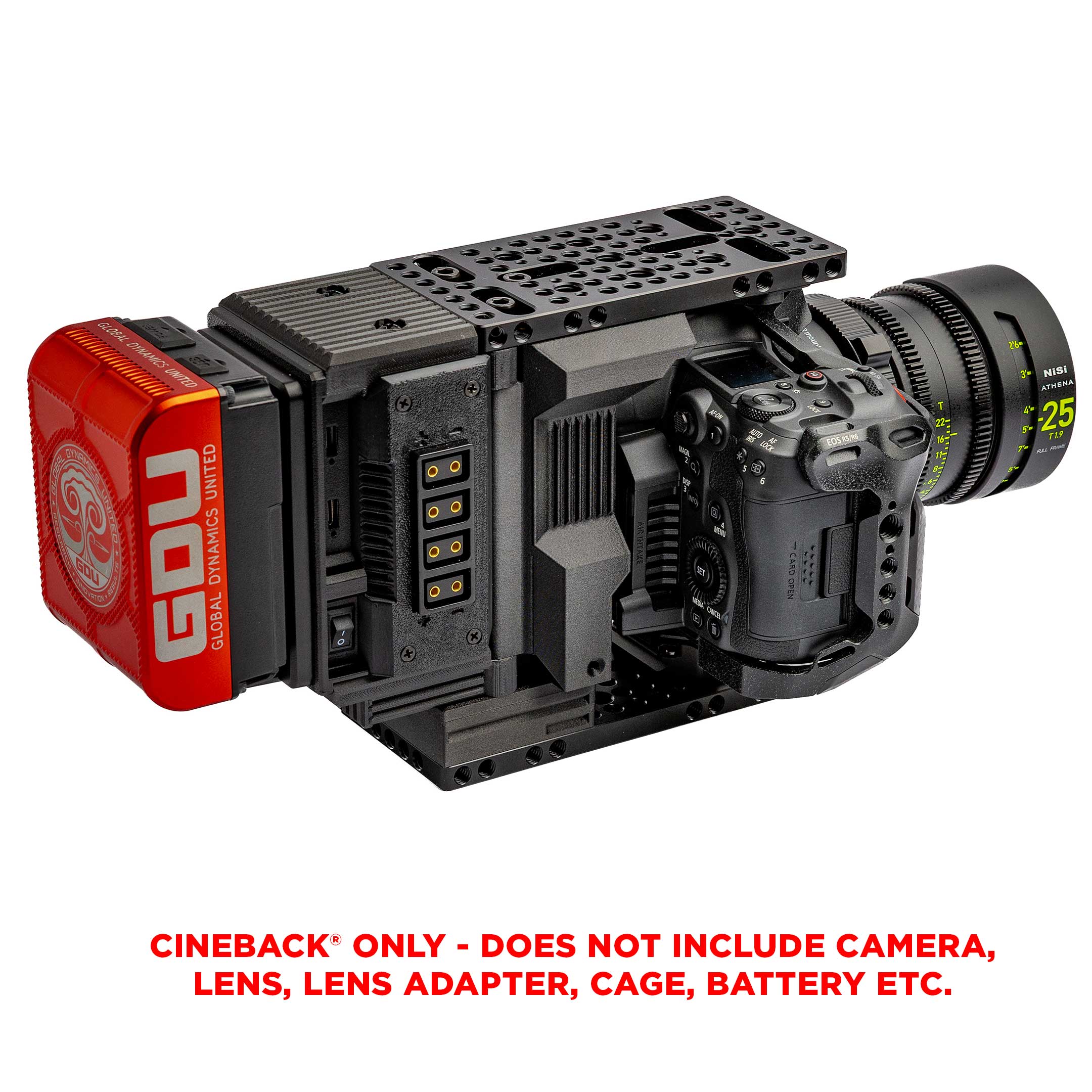

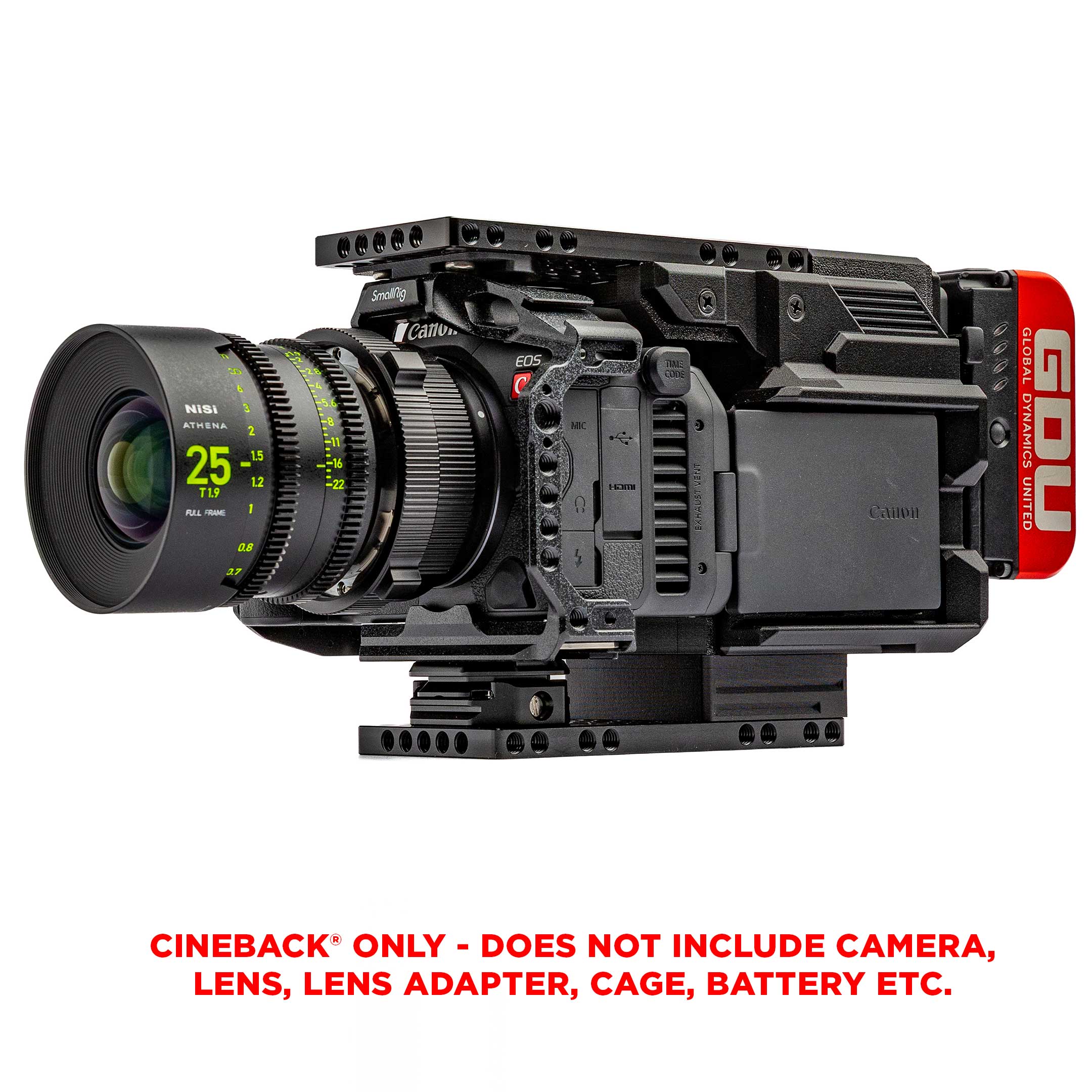

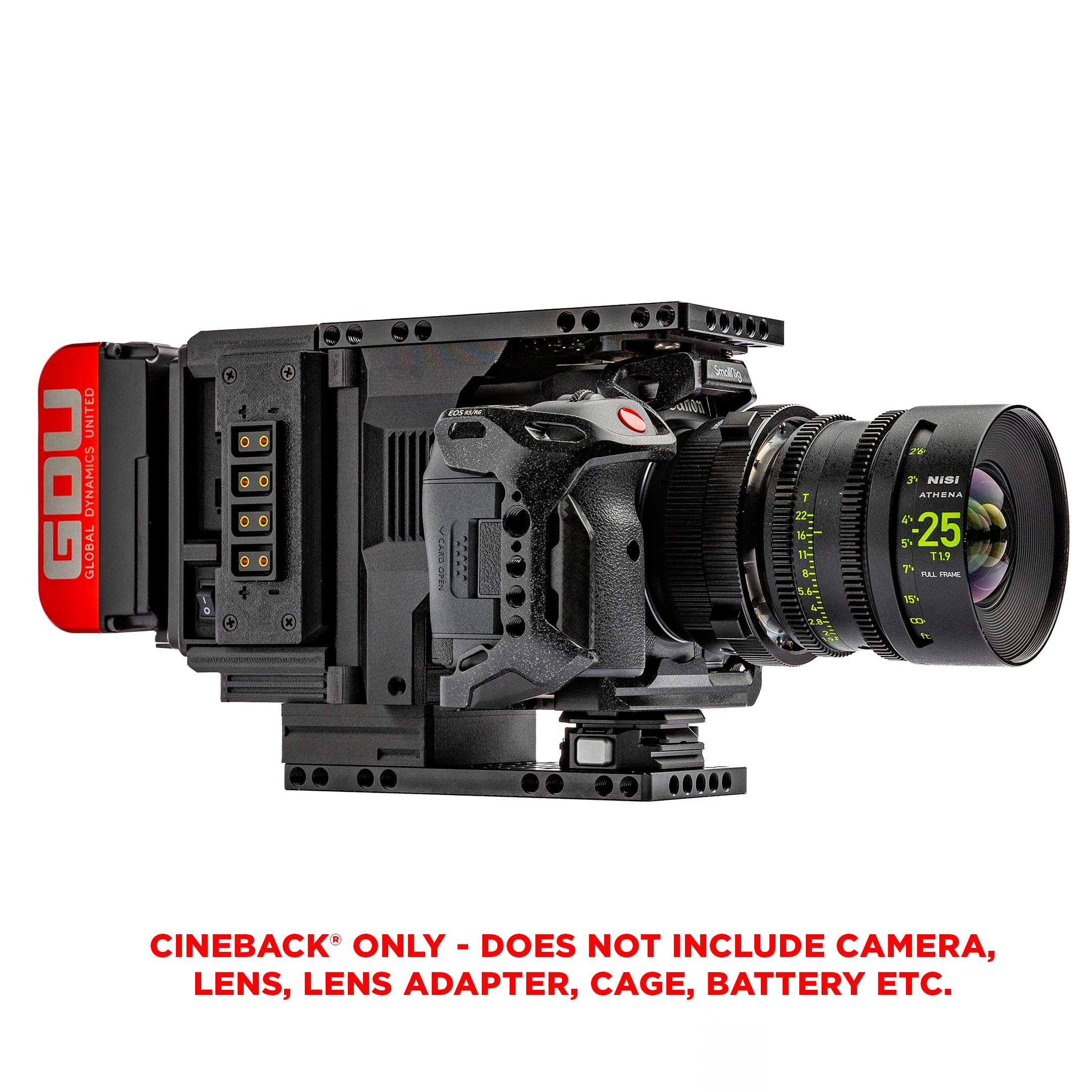

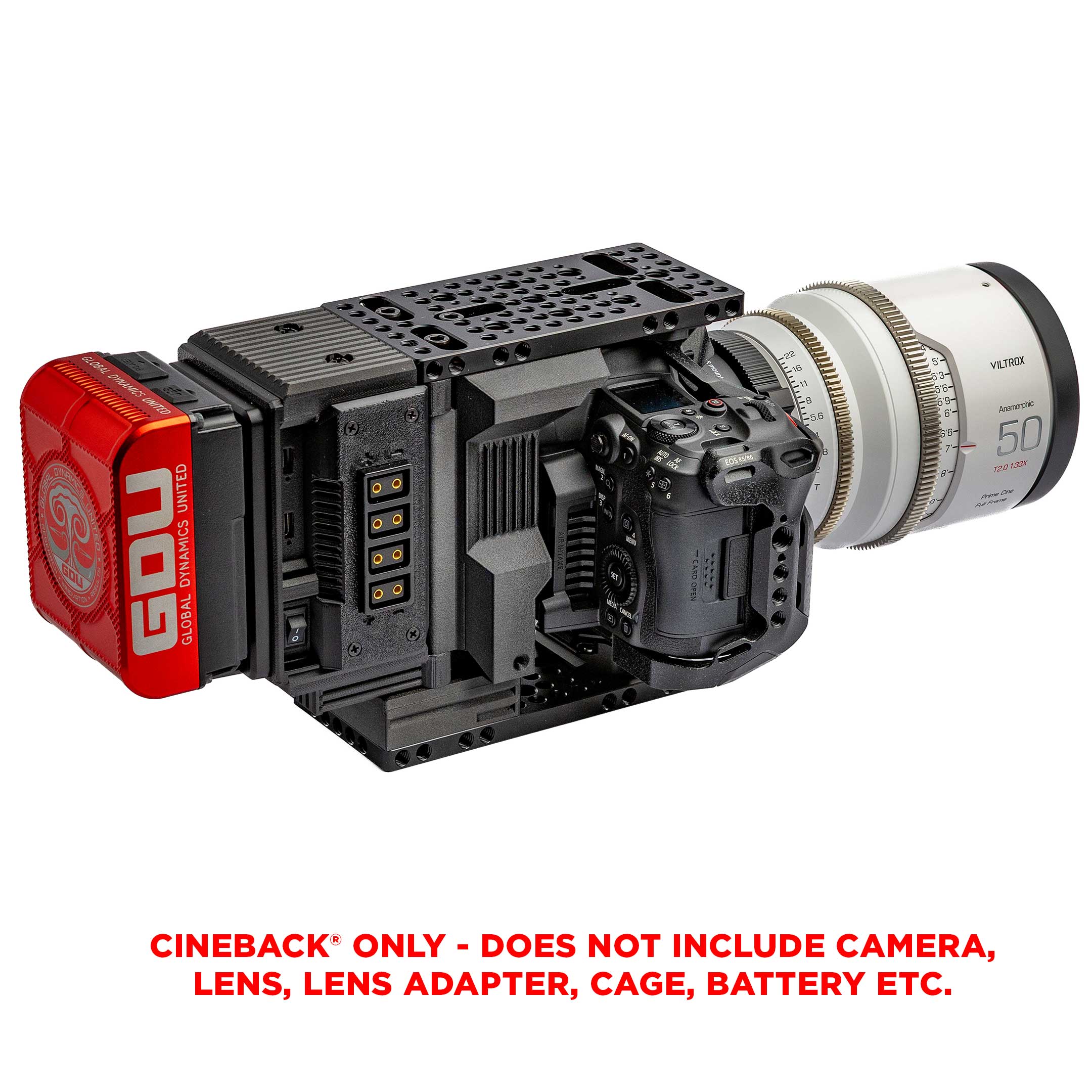

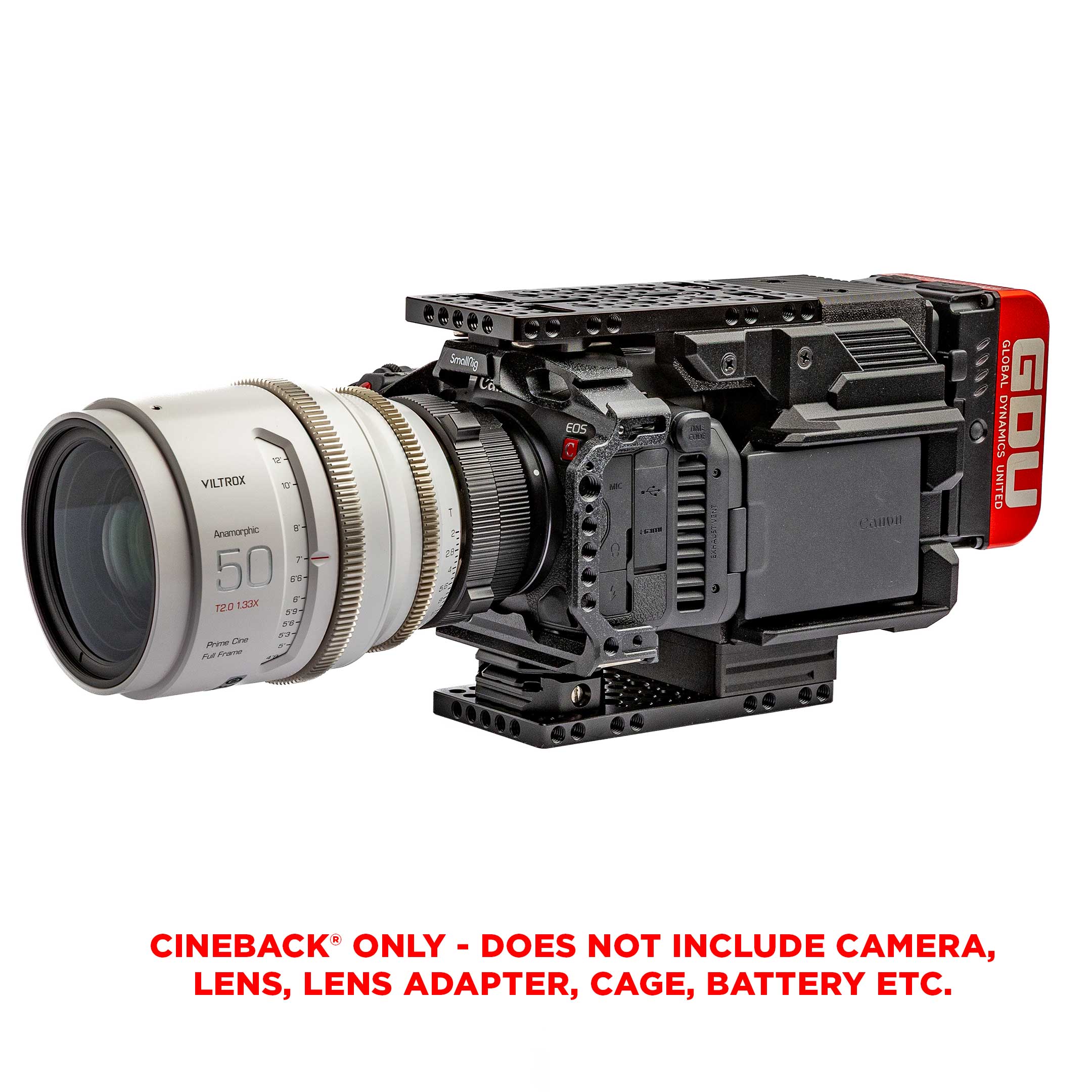

CineBack® is a camera rig that bolts onto the back of your camera giving you tons of mounting options, power choices and other features that you can learn about in the video and description below.

THREE Canon Cameras in ONE CineBack®! The R5 C CineBack® is compatible with R5 C, R5 and R6 cameras.

See all other Canon CineBack® models here.

Just add one of the cages mentioned below and you have a cinema camera!

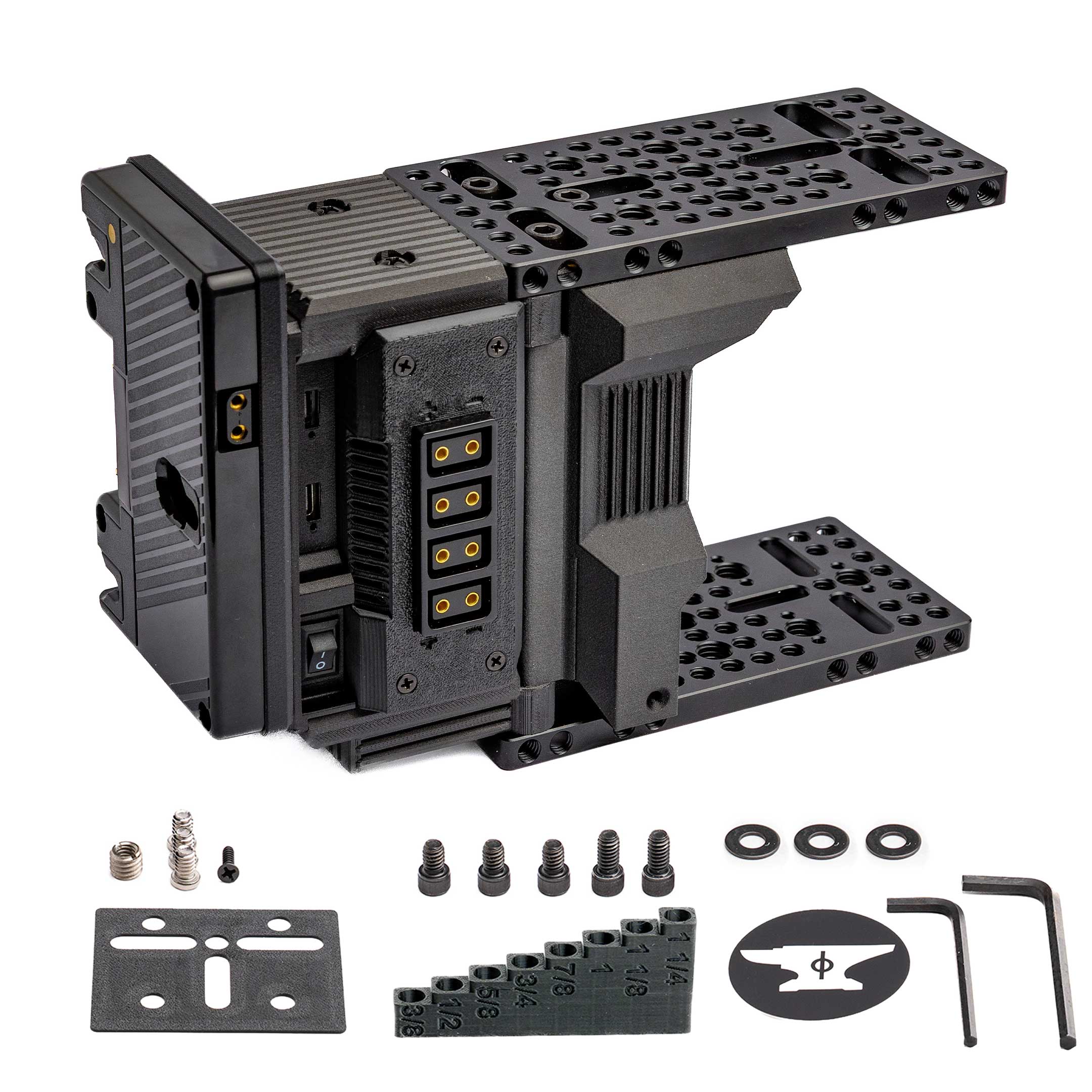

CineBack® V2 Features

• V-Mount or Gold Mount battery plate for longer run time
• Dual USB-C Power Delivery power jacks for powering your camera and other devices (right angle USB-C cables here) - NEW WITH V2!

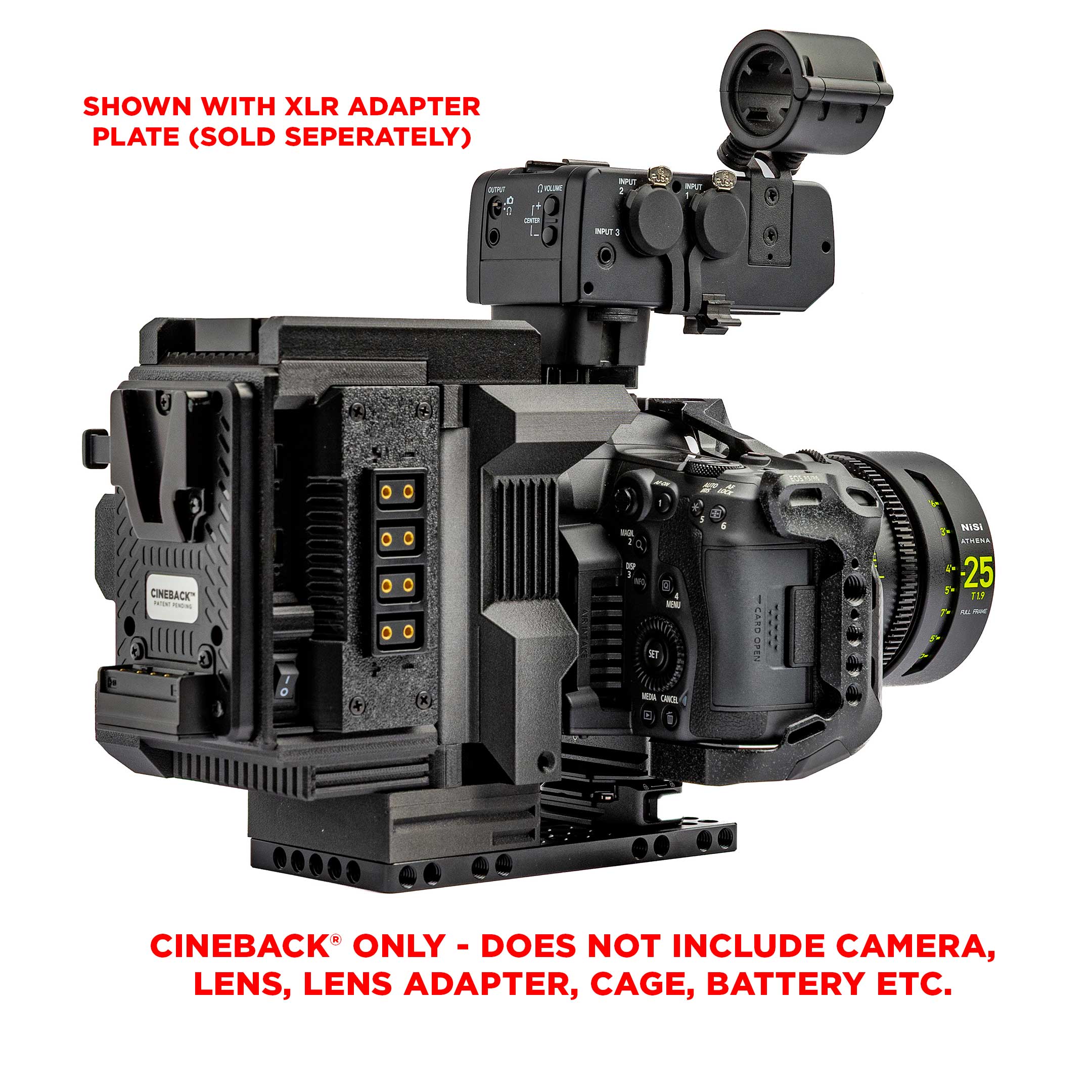

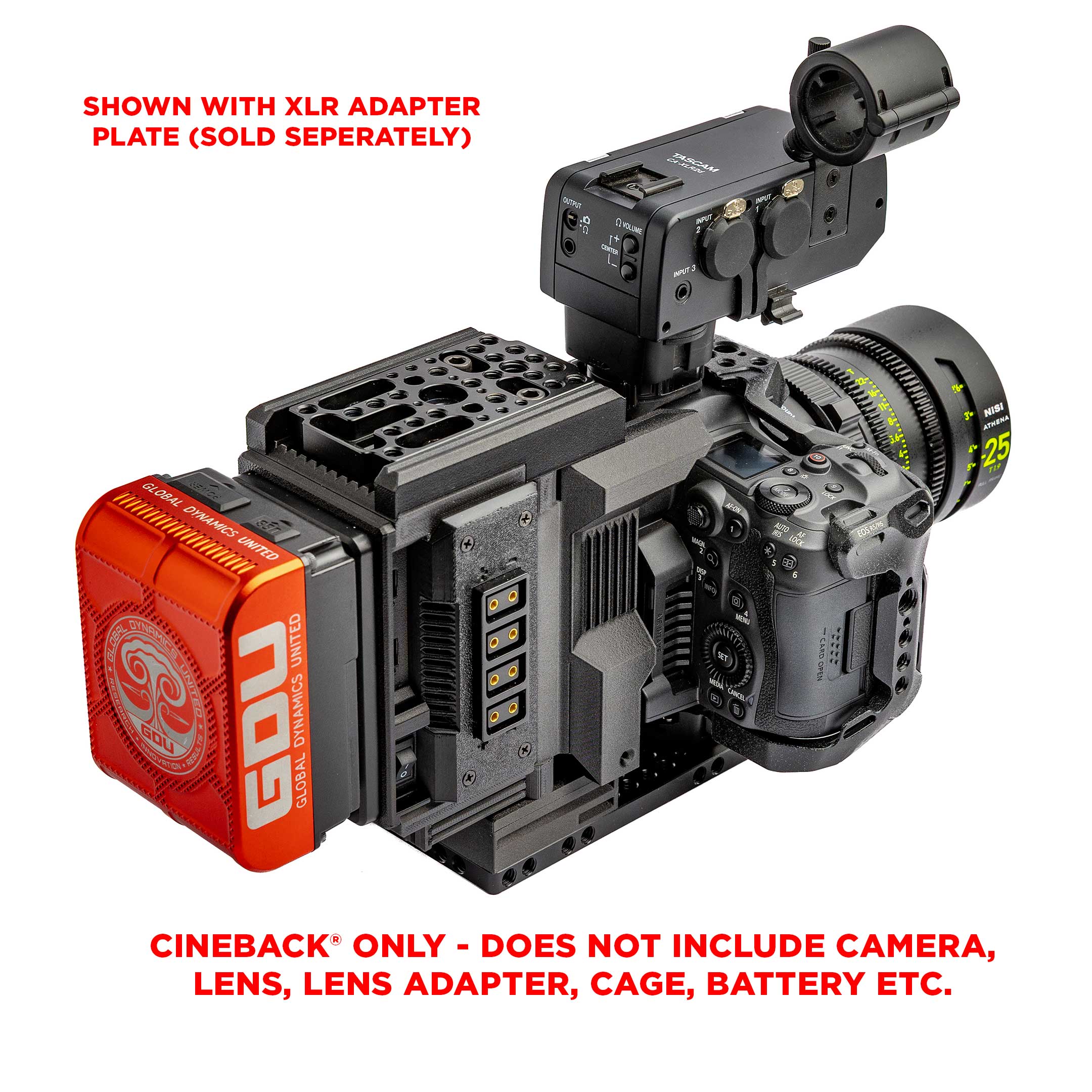

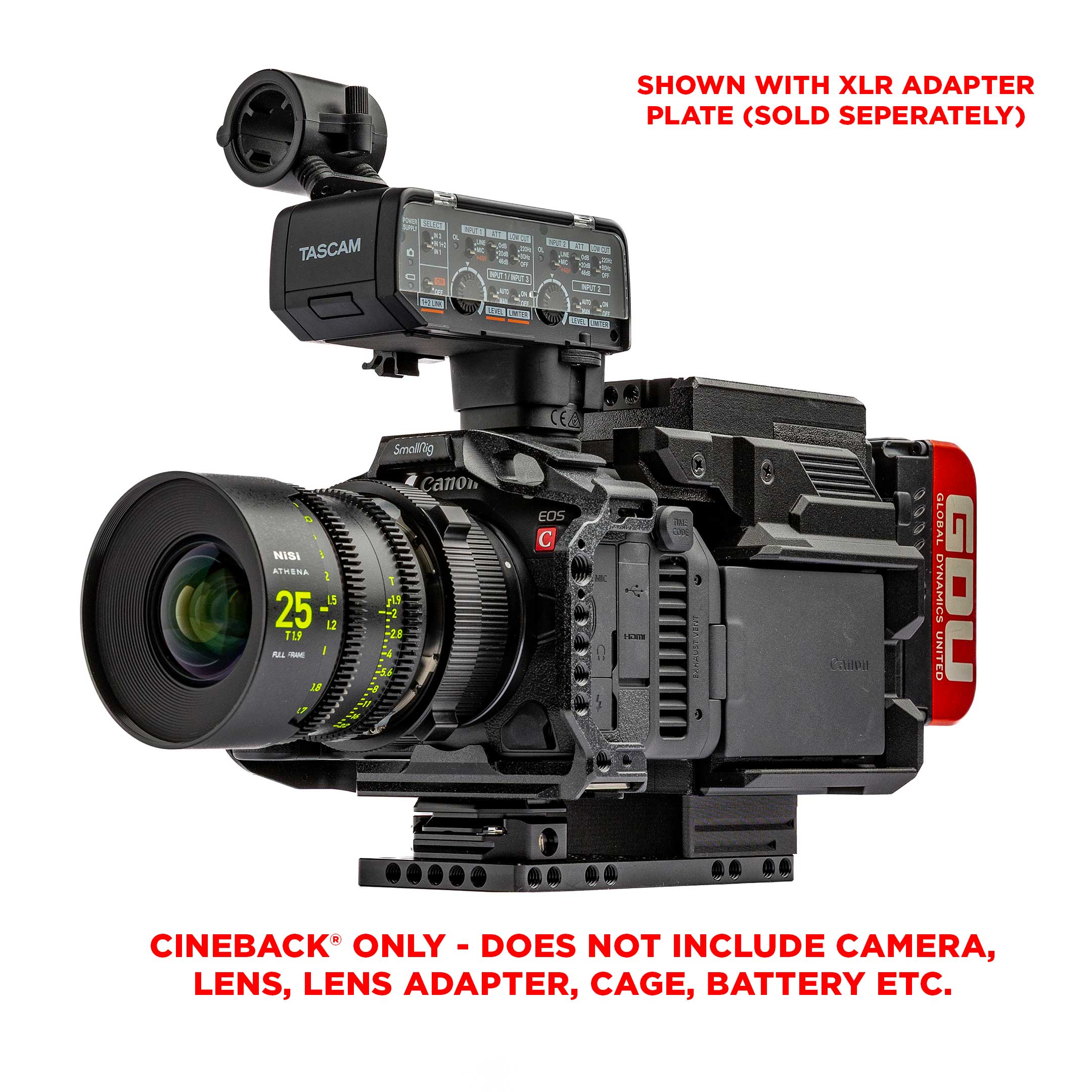

• Compatible with the TASCAM CA-XLR2d-C XLR adapter using our Canon XLR Adapter plate sold separately here.
• Cable management door and compartment and with cable routing built in.

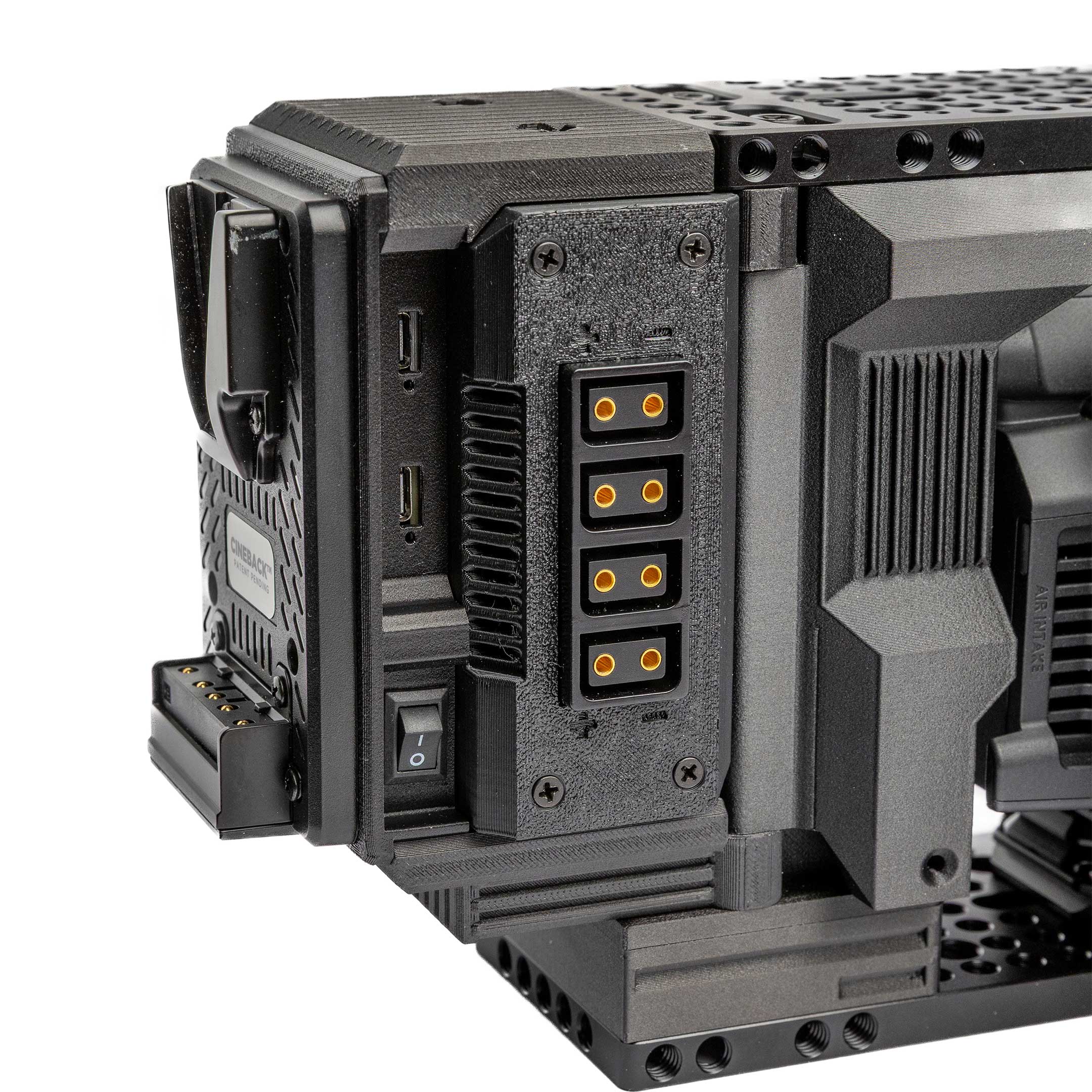

• Rotating D-Tap splitter with 4 outputs to power your camera and other accessories.
• Compatible with the CineBack® Quick Release Module - NEW WITH V2!
• Compatible with 3 cages now including the SmallRig Black Mamba cage - NEW WITH V2!
• Power switch to completely cut power so there is no battery drain
• Screen side mount allowing you to use your camera screen in cine mode, open or closed
• New top and bottom cheese plates for mounting accessories and other rigging gear - NEW WITH V2!
• Modular with future accessories possible (see all CineBack® accessories here).


Required Gear

You only need one thing to get CineBack® to work with your R5 C series camera is a cage. Here are the three that are supported:

• Tilta Full Cage for the R5 C (Model Number TA-T32-FCC-B)
• SmallRig 2982B Cage for R5 C, R5 or R6
• SmallRig 3233B Black Mamba Cage for R5 C, R5 or R6
• If you have the R5 or R6, the SmallRig 3233B or 2982B cage is required.

Optional Gear

• Quick Release Module - This spacer kit allows you to use the Falcam F38 Quick Release Plate.
• Falcam F38 Quick Release Combo  - Use this with the Quick Release Kit mentioned above to add quick release functionality to your CineBack®

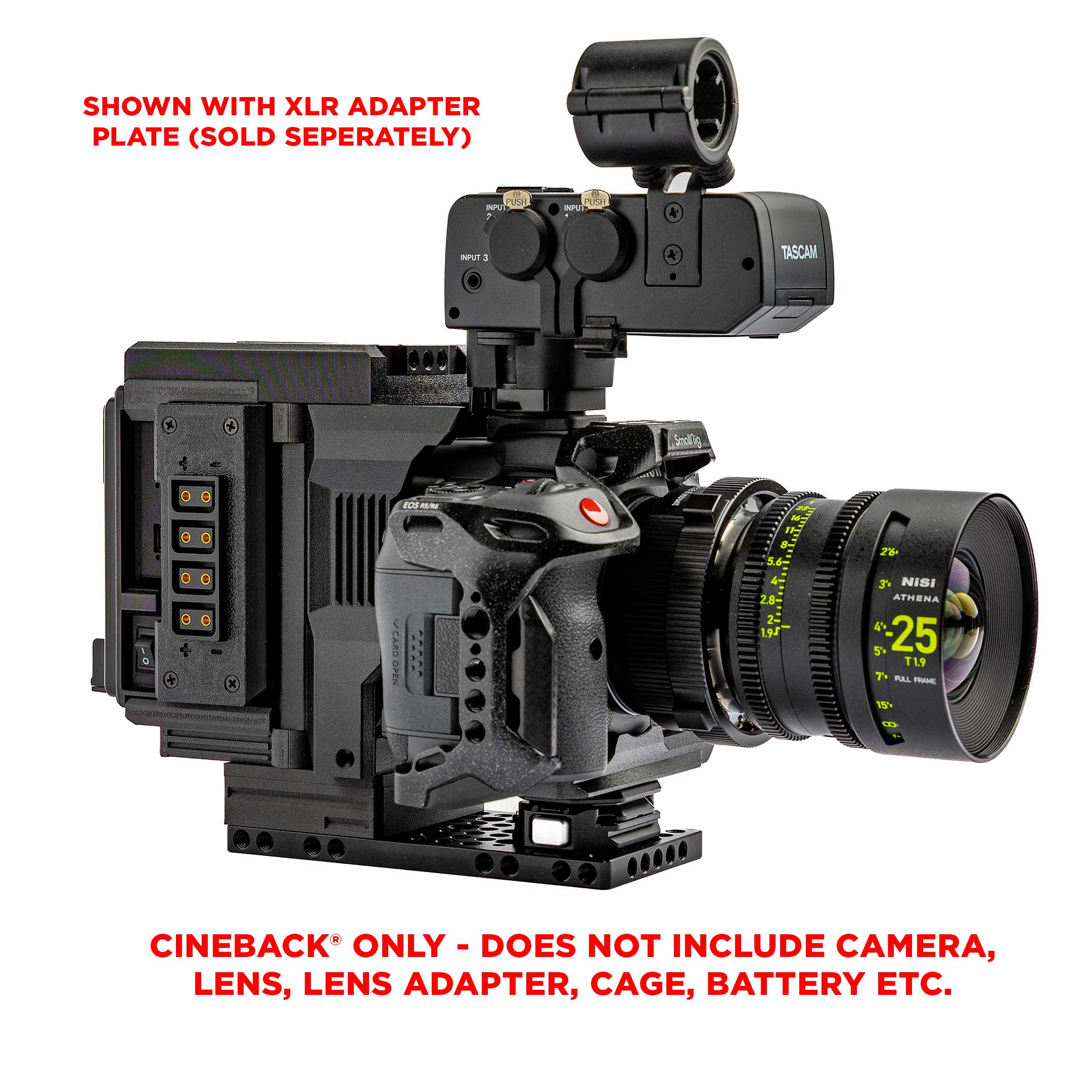

• Canon XLR Adapter Plate for CineBack® V2 - This kit allows you to use the TASCAM CA-XLR2d-C XLR Microphone Adapter with your CineBack® V2 (not compatible with CineBack® V1)
• Right Angle USB-C Cable - Perfect for power delivery from CineBack® to your camera. We recommend the 20 inch version for this CineBack®.

Specifications

• USB-C Jack (Each)
• Output: Automatically adjusts between 3.3V~12V when connected to USB-C PD (Power Delivery) compatible devices (input voltage should be higher than output voltage). 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
• Output over-current protection
• Short-circuit protection
• Over-temperature protection
• D-Tap 4x Splitter
• Output: Whatever voltage you connect to the V-Mount or Gold Mount. Often 14.8v
• 10A Max output current.
• Weight (no camera installed): 40oz



---

Discontinued Version 1 Information:

CineBack® R5 C Features

• V-Mount battery plate for longer run time
• Rotating D-Tap splitter with 4 outputs to power your camera and other accessories

• Power switch to completely cut power so there is no battery drain
• Screen side mount allowing you to use your camera screen in cine mode, open or closed

• Top and bottom cheese plates for mounting accessories and other rigging gear
• Cable management door and routing built in.
• Modular with future accessories possible.

Required Gear

You only need one thing to get CineBack® to work with your R5 C series camera is either the Tilta Full Cage for the R5 C (Model Number TA-T32-FCC-B) or the SmallRig 2982B Cage . We recommend the Tilta cage for the R5 C but if you have the R5 or R6, the SmallRig 2982B cage is required.

Optional Gear

Optionally you can power the camera from the D-Tap jacks on CineBack® with either a D-Tap to LP-E6 Dummy Battery or a D-Tap to USB-C with Power Delivery into the cameras USB jack. We've used the Alvin's Cable version as well as the Kondor Blue cable without issue and also really dig the Kondor Blue D-Tap to USB adapter.
